Shenzhen Tenchy Silicone&Rubber Co.,Ltd sales@tenchy.cn 86-755-29181281
製品詳細
起源の場所: 中国
ブランド名: TENCHY
証明: USP CLASS VI
モデル番号: TCM-005
支払いと送料の条件
最小注文数量: 500
パッケージの詳細: 二重消毒と滅菌包装を伴うシリコン胃管 - 医療 - グレード栄養チューブ。挿入によって正常に食べられない患者の胃を補うように特別に設計されています。
受渡し時間: 5-8日
支払条件: D/A、D/P、T/T、Western Union、MoneyGram
供給の能力: 日あたり1000

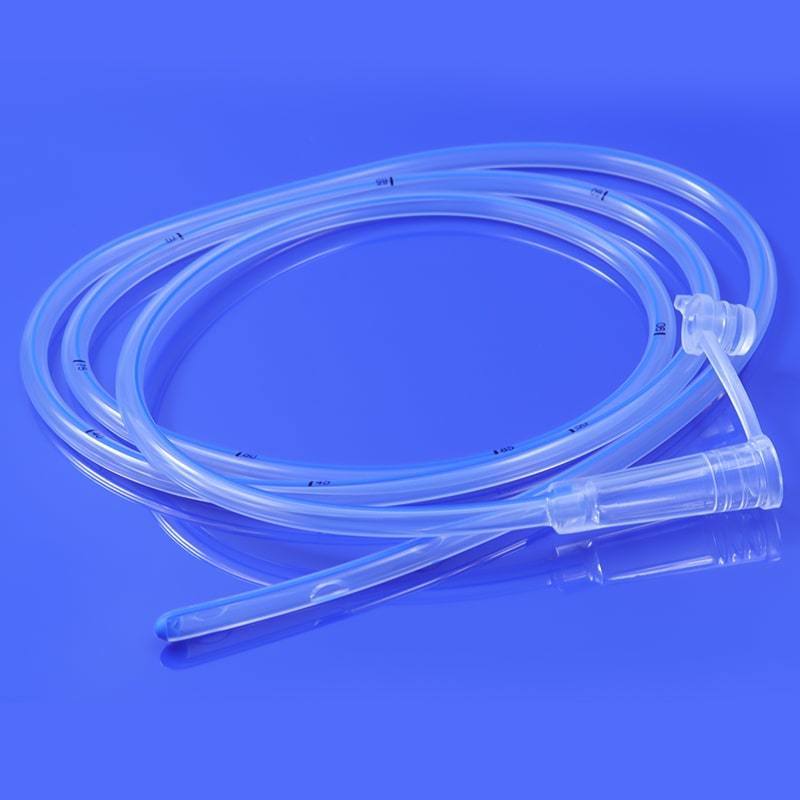

Medical-grade silicone feeding tubes are specifically designed for insertion to deliver nutritional supplements into the stomach of patients with impaired oral intake. Featuring optimal flexibility and biocompatibility, they provide gastrointestinal nutrition support for patients with normal digestive function but swallowing disorders, facilitate gastric lavage in drug poisoning emergencies, and enable gastric juice aspiration to monitor therapeutic efficacy in upper gastrointestinal bleeding management.
| Feature | Technical Specifications & Clinical Value |
| Medical Silicone | 100% platinum-cured silicone, free from plasticizers/allergens. Passes cytotoxicity & skin irritation tests (ISO 10993). |
| Low-Trauma Tip | Laser-polished closed distal tip + smooth side eyes (≤0.5mm edges) to prevent mucosal adherence and ulceration. |
| Kink-Resistant | Dynamic hardness balance (45±5 Shore A). Optimized lumen design reduces clogging risk. |
| Depth Markings | 1cm interval depth scales (FDA color standards, ≤0.2mm error). Color-coded connectors (red-gastric/blue-enteral). |
| Sterility Assurance | Double EO sterile barrier packaging (<1ppm residues). Supports gamma resterilization for OR use. |
Basic Information
| Item | Specification |
| Model | TCM-001 (ODM/OEM supported) |
| Brand | TENCHY Medical® (custom packaging/logo/manuals) |
| Certifications | CE 0459 (Class IIa), FDA 510(k), USP Class VI, LFGB, full biocompatibility reports |
| Sterilization | Ethylene Oxide (EO), batch traceable |
Physical Specifications
| Parameter | Range | Notes |
| Diameter (FR) | 8-26 FR (2FR increments) | ID: 2.67mm(8FR) ~ 6.67mm(20FR) |
| Length | 1250cm | Custom length (±5cm precision) |
| Side Eyes | 2~6 eyes (size-adapted) | Total eye area > lumen area to prevent clogging |
| Temp Resistance | -80℃~250℃ | Autoclavable (reusable type only) |
Performance Data
| Parameter | Value | Standard |
| Indwell Time | ≤30 days | EN 1618:2021 long-term implant |
| Reuse Cycles | Single Use | Tensile strength loss <8% post-autoclave |
| Flow Rate(20FR) | ≥250ml/min (aqueous) | 30° gravity drip simulation |
| Tensile Strength | ≥15N (break threshold) | ISO 10555-1 catheter testing |
| Radiopacity Acc. | ≤1cm positioning error | Clinical DSA validation |
Service Terms
| Item | Policy |
| Samples | 3 standard models free (requires medical license); global delivery in 3 days |
| Customization | OD/length/scale colors/packaging/logo; MOQ 500 units |
| Shelf Life | 3 years (unopened, <25℃, dark storage) |
| Support | Insertion videos/complication guide/sterilization protocols (multilingual) |
Applications:
· ICU gastric feeding
· Gastric feeding after partial gastrectomy for gastric Cancer
· Neurological Rehabilitation Gastric Feeding
· Home Care Gastric Feeding for Patients with Chronic Diseases (Diabetes Mellitus/Chronic Kidney Disease)
· Home Care Gastric Feeding for Long-Term Bedridden Patients
